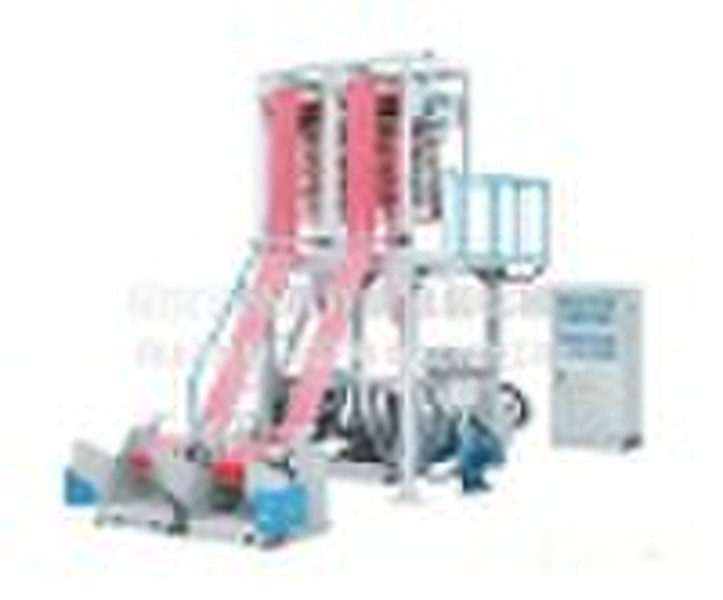

Double-die-head film blowing machine

Porduct Name: Double die head film blowing machine Product Model: MT/HL -45c/65c-2 Product Content: MT/HL series Two Die Head Film Blowing Machine MODEL MT/HL-45C-2 SUITABLE MATERIAL:HDPE FILM WIDTH: 150-450mm FILM THICKNESS:0.008-0.03mm MAX.EXTRUSION OUTPUT: 20-30kg/hr SCREW DIAMETER :φ45 SCREW L/D LENGTH : 28:1 SCREW MATERIAL :SACM-645/38 CRMOALA CYLINDER MATERIAL :SACM-645/38 CRMOALA CYLINDER COOLING :370×2 DRIVING MOTOR: 11Kw TEMPERATURE CONTROL :3 AVERAGE POWER-CONSUME :15Kw DIE SIZE: φ40/60×2 TEMPERATURE CONTROL :2 AIR RING: 2 AIR BLOWER ;1.5Kw ROLLER WIDTH :φ140×500 EFFECTIVE WIDTH: 400mm TAKE-UP SPEED: 10-110m/min TAKE-UP MOTOR: 0.75Kw HEIGHT ADJUSTABLE TYPE :800mm WINDING MOTOR: 6N.m WINDING SPEED :9-110m/min OVERALL DIMENSIONL×W×H 5.0×3.5×3.8m MODEL MT/HL-55C-2 SUITABLE MATERIAL:HDPE FILM WIDTH:150-500mm FILM THICKNESS:0.008-0.03mm MAX.EXTRUSION OUTPUT :30-50kg/hr SCREW DIAMETER: φ55 SCREW L/D LENGTH 28:1 SCREW MATERIAL :SACM-645/38 CRMOALA CYLINDER MATERIAL: SACM-645/38 CRMOALA CYLINDER COOLING : 370×2 DRIVING MOTOR: 18.5Kw TEMPERATURE CONTROL: 3 AVERAGE POWER-CONSUME :22Kw DIE SIZE : φ50/70×2 TEMPERATURE CONTROL: 2 AIR RING: 2 AIR BLOWER : 2.2Kw ROLLER WIDTH :φ140×550 EFFECTIVE WIDTH : 500mm TAKE-UP SPEED :10-110m/min TAKE-UP MOTOR : 0.75Kw HEIGHT ADJUSTABLE TYPE: 800mm WINDING MOTOR : 6N.m WINDING SPEED: 9-110m/min OVERALL DIMENSIONL×W×H5.0×3.9×3.8m OPTIONAL EQUIPMENT 1) AUTO LOADER 2) FILM SURFACE TREATER 3DIE ROTARY DEVICE 4MANUAL SCREEN CHANGER
